Testing Capabilities

Rigorous verification for critical environments

A wide variety of testing services are available at RBTS, including standard verification and unique, custom tests requested by our customers.

Standard Testing Services

  • Pressure Integrity
  • Tensile Strength
  • Vacuum
  • High/Low Temperature/Pressure Cycling
  • Burst Testing – To 30,000 psi
  • Electrical Conductivity
  • Other non-destructive or destructive testing, as required

Unique Physical Abuse Testing

Examples of additional unique testing performed by RBTS at customer's request to ensure absolute resilience in extreme conditions:

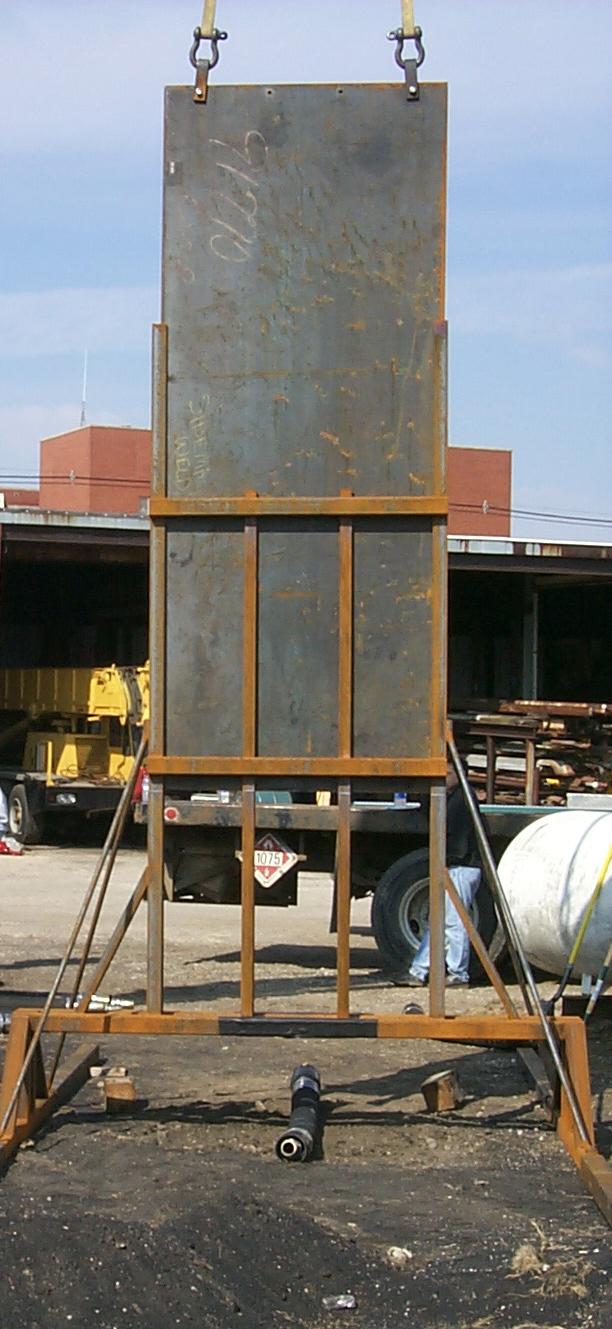

Shear testing fixture

Shear Impact Testing

Fixture built to test the ability of hose to withstand shearing of 2″ steel plate dropped from 4′.

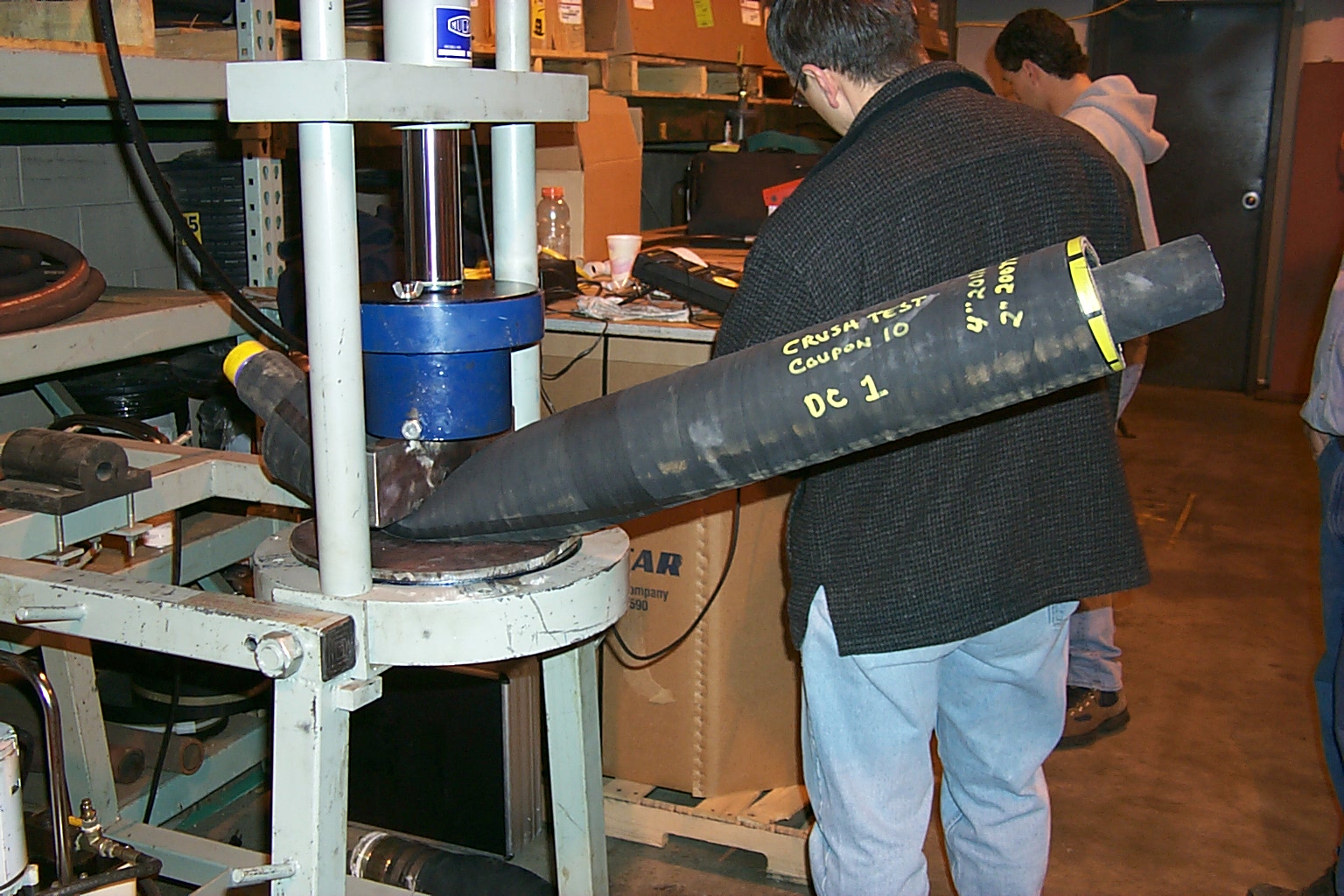

Crush test of 2x4 HIHTL sample

Static Crush Testing

Crush test of 2″ x 4″ HIHTL sample. Coupons subsequently passed "proof pressure testing."

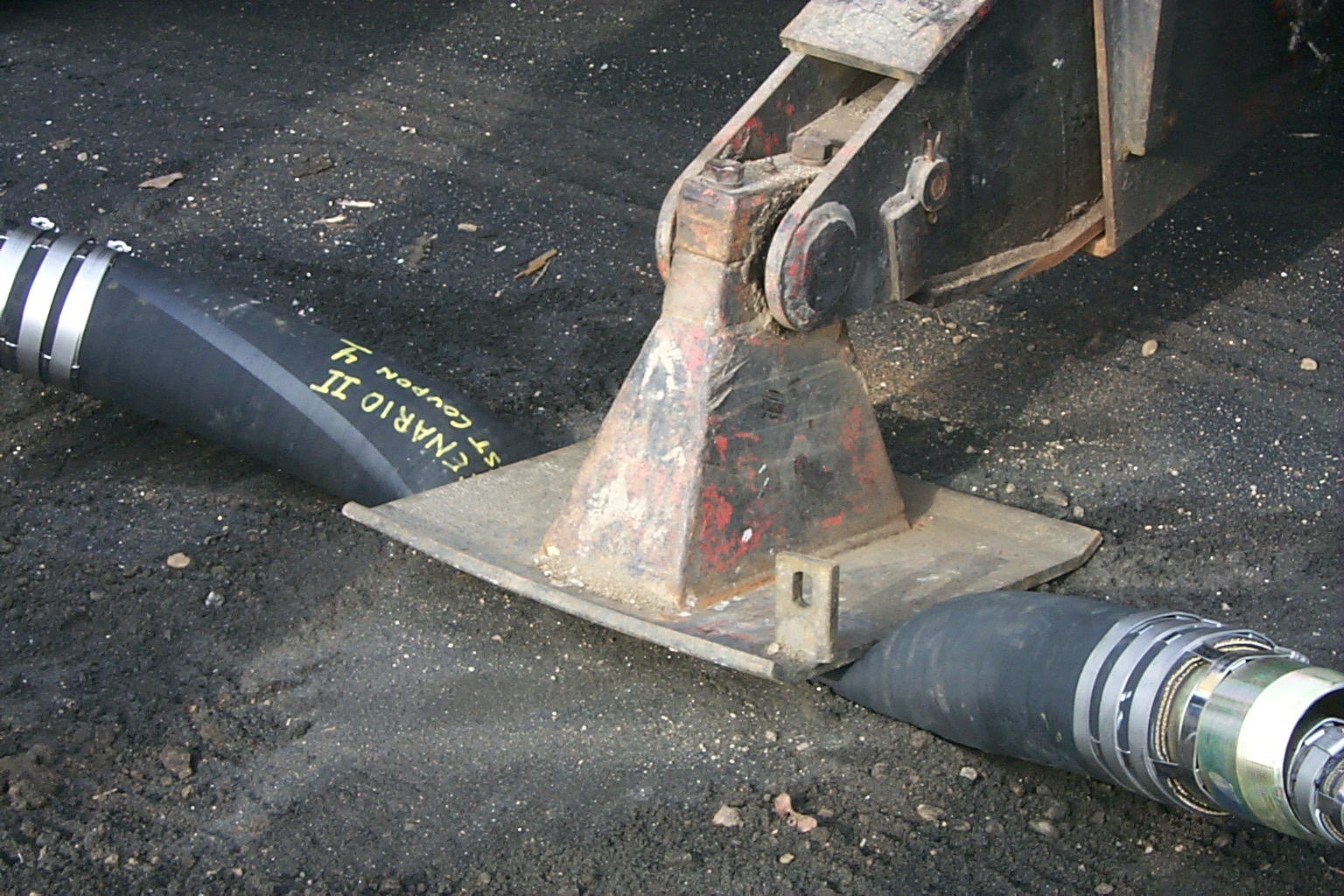

Crane outrigger crush test

Crane Outrigger Crush Testing

Testing of HIHTL sample to withstand being crushed by crane outrigger. Hose samples subsequently passed hydro-test.

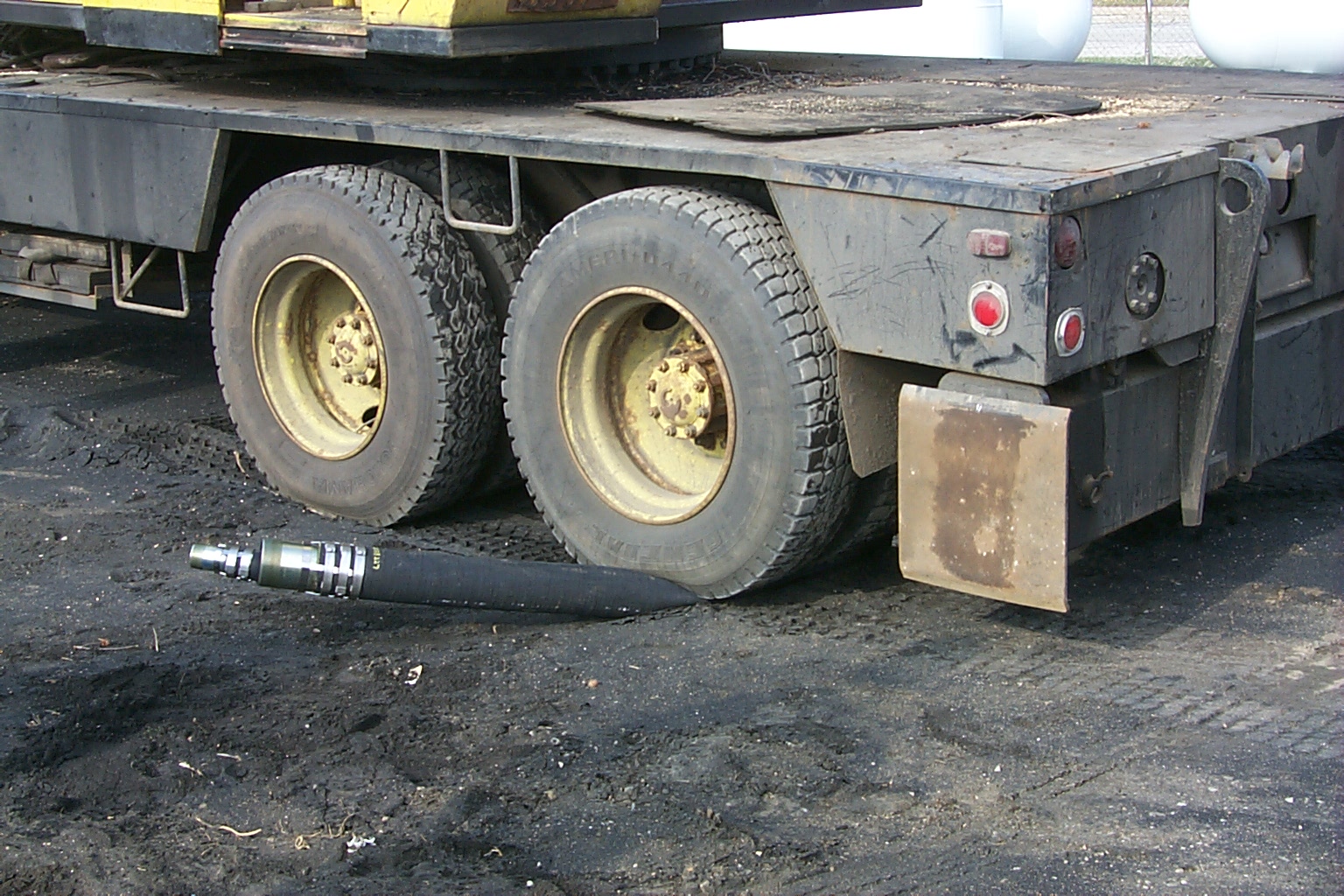

Truck runover test

Vehicle Runover Testing

Testing of HIHTL sample to withstand being run over by truck. Hose samples subsequently passed hydro-test.

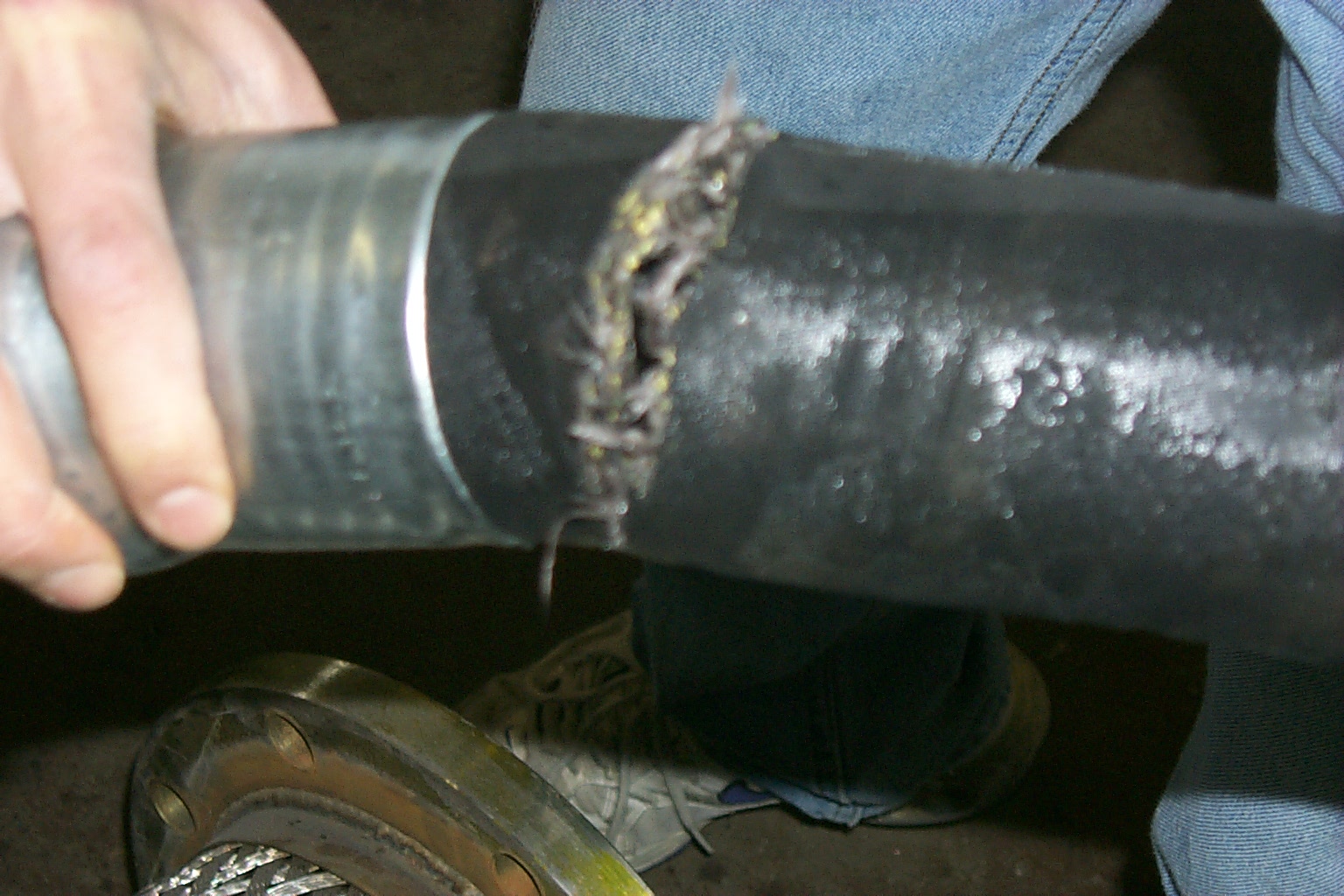

Burst test example

Extreme Burst Testing

Example of burst test of 2″ Safe-T-Chem hose coupon. Coupon failed at approximately 3000 psig.
